Use of mathematical modeling to study pressure regimes in normal and Fontan blood flow circulations

Article metrics

Abstract

We develop two mathematical lumped parameter models for blood pressure distribution in the Fontan blood flow circulation: an ODE based spatially homogeneous model and a PDE based spatially inhomogeneous model. Numerical simulations of the ODE model with physiologically consistent input parameters and cardiac cycle pressure-volume outputs, reveal the existence of a critical value for pulmonary resistance above which the cardiac output dramatically decreases. We also analyze the existence of solutions for two initial-boundary value problems for a non-linear parabolic partial differential equation (PDE model) with switching in time dynamic boundary conditions which model the blood pressure distribution in the cardiovascular system with and without Fontan surgery. We obtain necessary conditions for parameter values of the PDE model for existence and uniqueness of physiologically relevant non-negative bounded periodic solutions. These results suggest the use of our model for creation of synthetic data to overcome a lack of training data that currently is considered to be one of the main challenges for the use of machine learning for classification of healthy and failing Fontan patients.

Introduction

With a normal biventricular heart, the systemic and pulmonary blood circulations are in series and each one is supported by a ventricle, the left ventricle for the systemic circulation and the right ventricle for the pulmonary circulation (Fig. 1-Left). A serious birth defect affecting approximately 1 per 3000 births causes the systemic and pulmonary circulations to be driven by a single ventricle. (Fig. 1-Middle). In this situation, oxygenated blood returning from the lungs enters the ventricle and is mixed with deoxygenated blood from the body, and then pumped into the systemic and pulmonary arteries in a partially oxygenated state. This results in delivery of less oxygen than required to the body and less than optimal oxygen exchange in the lungs.

Fig. 1
figure1

Diagram for the normal heart circulatory system (left), for a single ventricular heart birth defect (middle), and for the Fontan circulatory system (right)

The Fontan surgical procedure is applied to a malformed heart for which a biventricular repair is not possible [19]. The Fontan procedure was first introduced in 1968 and involves routing systemic venous blood flow directly to the pulmonary arteries, circumventing the ventricular pumping chamber (Fig. 1-Right). In its modern form, the Fontan procedure involves creating a surgical connection, called the total cavopulmonary connection, from the superior vena cava (the vein carrying blood from the upper body to the heart) and inferior vena cava (the vein carrying blood from the lower body to the heart) to the left and right pulmonary arteries, using a synthetic graft called an extracardiac conduit. Thus, the single ventricle propels blood flow through the systemic arteries and capillaries, with the systemic venous return passively entering the pulmonary circulation. Consequently, the Fontan circulation creates the unusual state in which the force driving the pulmonary blood flow is the systemic venous pressure and is significantly less than for a biventricular heart.

Fontan surgery is an extraordinary story of success in that it has allowed a generation of newborn babies with the most severe forms of congenital heart disease to survive into adulthood [16]. Though life-saving, a univentricular Fontan circulation does not, however, reproduce biventricular physiology and has been considered abnormal in the sense that systemic venous hypertension (mean pressure > 10 mm Hg) occurs simultaneously with pulmonary arterial hypotension (mean pressure < 15 mm Hg) [4]. In patients with Fontan physiology, life expectancy remains far below projected age- and sex-matched normative values. Patients with Fontan procedures most frequently die from heart failure or from thromboemboli [13]. The incidence of thromboembolic deaths rises sharply 15 years after Fontan surgery [8, 26]. At the same time heart failure deaths are very uncommon during the first 10 years after Fontan surgery, with a steady decline in survival thereafter. Associated factors include protein-losing enteropathy, single right ventricle morphology, and increased Fontan pressures [19].

Late Fontan failure might progress gradually over years with an absence of overt symptoms. Fontan patients have lived with less than ideal cardiac output their entire lives and might not recognize a decline in functional status until deterioration is significantly advanced. In the medical literature, failure of the Fontan circulation is divided into 3 main categories: ventricular dysfunction, systemic complications of Fontan physiology, and chronic Fontan failure [12]. In a cross-sectional analysis of 546 children with Fontan procedures, 27% had abnormal ventricular ejection fractions and 72% had diastolic dysfunction. The prevalence of systolic and diastolic ventricular dysfunction continues to increase in adulthood [10, 22]. Over the past 5−10 years, a number of studies have described the effect of Fontan physiology on the liver. Hepatic venous pressure after Fontan surgery might be 3−4 times higher than normal, with levels commensurate with congestive heart failure in adults. Implications of this elevated hepatic venous pressure over the long term remain to be fully understood [2, 14]. Fontan physiology is characterized by progressively decreasing cardiac output and increasing central venous pressure over time. The average peak oxygen consumption ranges from 19 to 28 mL/kg per minute, or 50%−60% of normal physiological values [11, 21]. In the third decade of life, hospitalization rates and symptoms increase significantly [6].

While the Fontan surgery has been life saving for these patients, much remains unknown about Fontan failure and when failure is going to occur in a particular patient. Mathematical modeling of the Fontan circulation can provide insight into Fontan failure and ultimately could be used in a patient-specific basis to identify early failure in a given patient and possibly suggest potential individualized treatment options. The objective of the present study is to develop lumped parameter models of the Fontan circulation with the goal of understanding the systematic changes that occur during Fontan failure. This problem was originally posed at an Industrial Problem Solving Workshop at the Fields Institute in 2016 by a cardiologist and an engineer at Toronto General Hospital with the ultimate goal of mathematically identifying Fontan failure at an earlier time-point than current clinical approaches.

The outline of this paper is as follows. First, we describes previous mathematical models of the Fontan circulation. Then we present a spatially homogenous ODE model of the Fontan circulation including some basic results from this model, showing its consistency with physiological behaviour. Next we describe spatially inhomogeneous PDE models of the normal and Fontan circulations, which are an extension of the ODE approach that allows for spatially inhomogeneous variation of the model parameters. Then, we determine values of parameters for the PDE models such that a unique non-negative solution exists. Lastly, we show how to construct super- and sub-solutions for the PDE models.

Discussion and mathematical modeling results

Computational fluid dynamics

Computational fluid dynamics is a powerful tool that has been used to gain insight into the local blood flow dynamics in the Fontan circulation. These simulations are used to model the detailed 3-D hemodynamics of a particular region of the circulatory system, such as the total cavopulmonary connection, rather than the complete circulation. A simplified three-dimensional model was used [24] to simulate the local fluid dynamics for different designs of the total cavopulmonary connection, allowing a quantitative evaluation of the dissipated energy in each of the examined configurations. The authors show that, from a comparative point of view, the energetic losses can be greatly reduced if a proper hydraulic design of the connection is adopted.

Under the assumptions that vessel walls are completely rigid (according to surgical reports, the vessel diameter change per cardiac cycle is around 5−10% in most of the major arteries) and all vessels are radially symmetric, numerical simulations of blood flow to the lungs after a surgical Fontan procedure are described in [7]. The authors simulated the full nonlinear Navier-Stokes equations using a streamline finite element method. They analyzed the blood flow dynamics for different values for the offset between the superior vena cava and the inferior vena cava anastomoses and concluded that the optimal distance for the offset is about 7 mm. It was shown in [1] that wall flexibility can play an important role in determining quantities of hemodynamic interest in the Fontan connection. However, [23] recently showed that while fluid-structure interaction effects are important for instantaneous quantities of interest in the Fontan circulation, they have a negligible impact on time-averaged values.

According to [5], the main quantities of importance in modeling the Fontan procedure are:

  • Vessel diameters and flow rates representative of the range seen in the patient group under study including resting and exercise states

  • Vessel sizes and flow rates matched appropriately

  • Compliant vessels, accurate modeling of surgical anastomosis sites, and surgical material used (unless proven unnecessary)

  • Unsteady flow

  • Effects of respiration

  • Correctly shaped vessel anatomy

Two different types of boundary conditions, time-averaged and pulsatile, were analyzed in [27]. The authors derived a patient-specific sensitivity criterion which provides a guideline for determining when time-averaged boundary conditions can be used to save computational time.

Recent advances in imaging methods and patient-specific modeling now reveal increasingly detailed information about blood flow patterns in healthy and diseased Fontan states. Building on these tools, there is now an opportunity to couple blood flow simulation with optimization algorithms to improve the design of surgeries and devices, incorporating more information about the flow physics in the design process to augment current medical knowledge. To do so, there is a need for efficient optimization tools that are appropriate for unsteady fluid mechanics problems, particularly for the optimization of complex patient-specific models in the presence of uncertainty. The state of the art in optimization tools for virtual surgery, device design, and model parameter identification in cardiovascular flow and mechanobiology applications are reviewed in [28]. In this work, the authors perform optimization on a model Y-graft design problem. This work represents the first use of formal design optimization methods for the Fontan surgery, and also demonstrates the applicability of the optimization framework on a pulsatile flow problem with multiple design parameters and constraints.

Lumped parameter models

While computational fluid dynamics models can be used to calculate detailed three-dimensional blood flow in the total cavopulmonary connection, the computational costs of this approach prevent it from being used to simulate the entire circulatory system. Because Fontan failure is a systemic problem, reduced order methods, such as lumped parameter models, can be used to study this phenomenon. Lumped parameter models are based on the analogy between fluid flow and electric circuits. In addition to modelling the entire circulatory system, these models can also be used to generate appropriate upstream and downstream boundary conditions for computational fluid dynamics simulations.

The use of lumped parameter models to study the circulatory system was pioneered by Guyton in [13]. A lumped parameter model of the Fontan circulation was used by [25] to generate boundary conditions for a computational fluid dynamics model used to design a Fontan assist device. In a study by [18], lumped parameter models of the Fontan circulation and the normal circulation were compared to determine differences between the two circulations in the regulations of cardiac output and central venous pressures. In studies by [9, 15, 17], a lumped parameter model was used to study the Fontan circulation under exercise conditions. In a study by [3], lumped parameter models were used with clinical data to investigate differences in healthy and failing Fontan circulations; however the type of Fontan circulation differed between the healthy and failing groups making it difficult to draw conclusions from their study.

Spatially homogeneous ODE model of blood pressure distribution for the Fontan circulation

A simple model of the Fontan circulation can be based on an electric circuit approach. This model consists of five compartments: the heart, the arterial system, the capillary system, the venous system, and the pulmonary system (lungs). For the Fontan circulation, all compartments are connected in series around a single loop. In particular the flow must pass sequentially through the arteries, capillaries, veins and lungs, before returning to the heart, as shown in Fig. 2.

Fig. 2
figure2

Circuit diagram for the Fontan heart circulatory system (left) and piecewise heart compliance as a function of time (right)

We model the capillary and pulmonary systems as linear resistance vessels. That is, we assume that the pressure drop across the vessel is proportional to the flow through the vessel, with a constant of proportionality called the resistance, labeled Rc and Rp, for the capillary and pulmonary systems, respectively. We assume these vessels have no compliance. We model the arterial and venous systems as linear compliance vessels, in which the volume of the vessel is proportional to the pressure in the vessel, with constant of proportionality called the compliance. We allow for compliance vessels to have resistance, which is modeled in the same way as for the resistance vessels. The compliances of the arterial and venous systems are labeled Ca and Cv, respectively, while their resistances are Ra and Rv. The heart is considered to be a linear compliance vessel with different compliances depending on whether it is relaxed (in diastole) or contracted (in systole). As shown in Fig. 2, the heart has compliance Cd in diastole (0≤t<0.7) and compliance Cs in systole (0.7≤t<1). We assume that all vessels contain some basal volume at zero pressure, which are denoted as \(V_{i}^{0}\).

The variables in the system are the volumes Va, Vv and Vh of the compliance vessels (the arterial system, the venous system and the heart), and the pressures PA, Pa, Pv and Ppv at different points along the loop; see Fig. 2, where subscripts A, a, v, and pv represent the aorta, arteries, veins, and pulmonary veins, respectively. The parameters of the system are the resistances, compliances and basal volumes of all the vessels as well as the total blood volume VT. Estimates for all the parameters can be found by measurement on individuals. For the results that follow, the values of the parameters that we use have been taken from the literature and are given in Table 1. Parameter values: V in units of L, C in units of L/mm Hg and R in units of mm Hg · min/L. It should be noted that Vs was chosen to be negative to achieve a reasonable value of systolic heart compliance Cs. In practice, the systolic pressure is never a small value or 0, so the volume in the heart never reaches the negative value \(V_{s}^{0} = -0.5\).

Table 1 Parameter values

We consider the compliance of the heart to be a piecewise constant function, with value Cs in systole and value Cd in diastole. To ensure appropriate directionality of the forcing, we assume that there are “perfect” valves where the pulmonary vein enters the heart and where the aorta leaves the heart. Anatomically, in Fontan circulation, the pulmonary vein enters a common atrium which is separated from the single ventricle by an atrioventricular valve. Depending on whether the patient has a functioning right or left ventricle, this valve is either the tricuspid valve or the mitral valve. Similarly, the single ventricle is separated from the aorta by a semilunar valve, which is either the pulmonary valve or the aortic valve. For the purposes of these models, we are neglecting the common atrium by considering it an extension of the pulmonary vein, and we refer to the valve separating the pulmonary vein from the heart as the “pulmonary vein valve” and the valve separating the heart from the aorta as the “aortic valve”. In our model, during diastole, the pulmonary vein valve is open and the aortic valve is closed, allowing flow into the heart, and during systole, the pulmonary vein valve is closed while the aortic valve is open allowing flow out of the heart and into the arteries. We assume that the valves are perfect in the sense that they open and close instantaneously and in synchrony, and that they do not allow back flow, regardless of pressure differences or flow characteristics. These assumptions lead to a cardiac pressure-volume cycle as presented in Fig. 3.

Fig. 3
figure3

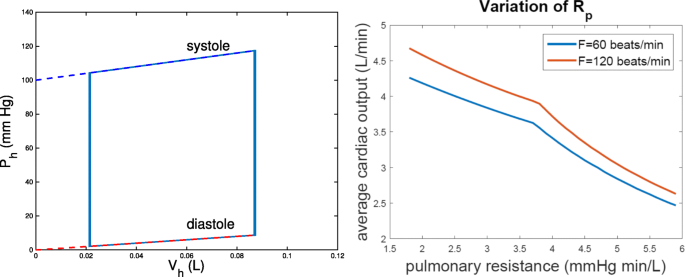

The cardiac pressure-volume cycle from our model (left) and effect of pulmonary resistance on cardiac output(right)

We use conservation of volume in each compartment to set up the dynamic equations. In particular, we must have the rate of change in volume of a compartment equal to the difference of the flow in and flow out. Due to the assumptions on the valves, there are discontinuities in the variables and their derivatives as the valves switch. Thus, it is convenient to distinguish the time intervals in which the heart is in systole and in which it is in diastole. As such, there is one set of model equations that is valid in diastole, while another set of equations is valid in systole.

The three flow rates are the arterial, capillary and pulmonary flow rates, defined as

$$ Q_{a}=\frac{P_{A}-P_{a}}{R_{a}}, \quad Q_{c} = \frac{P_{a}-P_{v}}{R_{c}}, \quad Q_{p} = \frac{P_{v}-P_{pv}}{R_{p}}. $$
(1)

The three compliance volumes are the arterial, venous and heart volumes, defined as

$$ V_{a} = V_{a}^{0}+C_{a}P_{a}, \quad V_{v} = V_{v}^{0}+C_{v}P_{v}, \quad V_{h} = V_{h}^{0}+C_{h}P_{h}, $$
(2)

with

$$ V_{h} = \left\{ \begin{array}{cc} V_{d}^{0} + C_{d} P_{pv} & \text{during ~ diastole}\\ V_{s}^{0} + C_{s} P_{A} & \text{during~ systole} \end{array} \right.. $$
(3)

Consequently, the dynamic equations are, during inflow (diastole),

$$ \left\{ \begin{array}{ll} C_{a}\frac{{dP}_{a}}{dt} &= Q_{a}-Q_{c}, \\ C_{v}\frac{{dP}_{v}} {dt} &= Q_{c}-Q_{p}, \\ C_{d}\frac{{dP}_{pv}} {dt} &=Q_{p}, \end{array} \right. $$
(4)

so that Qa=0 and PA=Pa, and during outflow (systole)

$$ \left\{ \begin{array}{ll} C_{a} \frac{{dP}_{a}}{dt} &= Q_{a}-Q_{c}, \\ C_{v} \frac{{dP}_{v}}{dt} &= Q_{c}-Q_{p},\\ C_{s} \frac{P_{A}}{dt} &= -Q_{a}, \end{array} \right. $$
(5)

so that Qp=0 and Pv=Ppv. In addition, total volume must always be conserved, so that

$$ V_{T} = V_{a} + V_{v} + V_{h}. $$
(6)

It is possible to simplify these equations by using the conservation law (6). In particular, during inflow (diastole),

$$ \left\{ \begin{array}{ll} C_{a} \frac{{dP}_{a}}{dt} &= -\frac{P_{a}-P_{v}}{R_{c}}, \\ C_{v} \frac{{dP}_{v}}{dt} &= \frac{P_{a}-P_{v}}{R_{c}} - \frac{P_{v}-P_{pv}}{R_{p}},\\ P_{pv} &= \frac{1}{C_{d}} \left(V_{T}-V_{a}^{0}-C_{a}P_{a}-V_{v}^{0}-C_{v}P_{v}-V_{d}^{0} \right),\\ P_{A} &= P_{a}, \end{array} \right. $$
(7)

and during outflow (systole)

$$ \left\{ \begin{array}{ll} C_{a} \frac{{dP}_{a}}{dt} &= \frac{P_{A}-P_{a}}{R_{a}} - \frac{P_{a}-P_{v}}{R_{c}},\\ C_{v} \frac{{dP}_{v}}{dt} &= \frac{P_{a}-P_{v}}{R_{c}},\\ P_{A} &= \frac{1}{C_{s}} \left(V_{T}-V_{a}^{0}-C_{a}P_{a}-V_{v}^{0}-C_{v}P_{v}-V_{s}^{0} \right),\\ P_{pv} &= P_{v}. \end{array} \right. $$
(8)

We can then define coefficients:

$$a_{1} = \frac{1}{C_{a} R_{c}}, \, b_{1} = \frac{1}{C_{v}} \left[ \frac{1}{R_{c}} - \frac{C_{a}}{C_{d} R_{p}} \right], \, c_{1} = \frac{1}{C_{v}} \left[ \frac{1}{R_{c}} + \frac{1}{R_{p}} + \frac{C_{v}}{C_{d} R_{p}} \right], $$
$$a_{2} = \frac{1}{C_{v} R_{c}}, \, b_{2} = \frac{1}{C_{a}} \left[ \frac{1}{R_{c}} + \frac{1}{R_{a}} + \frac{C_{a}}{C_{s} R_{a}} \right],\ c_{2} = \frac{1}{C_{a}} \left[ \frac{1}{R_{c}} - \frac{C_{v}}{C_{s} R_{a}} \right], $$
$$d_{1} = \frac{1}{C_{v} C_{d} R_{p}} \left[ V_{T} - V_{a}^{0} - V_{v}^{0} - V_{d}^{0} \right], \, d_{2} = \frac{1}{C_{a} C_{s} R_{a}} \left[ V_{T} - V_{a}^{0} - V_{v}^{0} - V_{s}^{0} \right], $$

two matrices:

$$A_{d} = \left(\begin{array}{cc} -a_{1} & a_{1} \\ b_{1} & -c_{1} \\ \end{array} \right), \qquad A_{s} = \left(\begin{array}{cc} -b_{2} & c_{2} \\ a_{2} & -a_{2} \\ \end{array} \right), $$

and three vectors:

$$b_{d} = \left(\begin{array}{c} 0 \\ d_{2} \\ \end{array} \right), \quad b_{s} = \left(\begin{array}{c} d_{1} \\ 0 \\ \end{array} \right), \quad \text{and} \quad P = \left(\begin{array}{c} P_{a} \\ P_{v} \\ \end{array} \right). $$

In terms of new notation, during diastole the ODE system is \( \frac {dP}{dt} = A_{d} \, P + b_{d}\) and during systole it is \( \frac {dP}{dt} = A_{s} \, P + b_{s}\).

We first show that the equilibrium points for both ODE systems are stable nodes. The determinant of the matrix Ad is

$$\Delta (A_{d}) = a_{1}(c_{1} - b_{1}) = \frac{C_{a} + C_{v} + C_{d}}{C_{a} C_{d} C_{v} R_{c} R_{p}} > 0 $$

and the determinant of the matrix As:

$$\Delta (A_{s}) = a_{2}(b_{2} - c_{2}) = \frac{C_{a} + C_{v} + C_{s}}{C_{a} C_{s} C_{v} R_{c} R_{a}} > 0. $$

The trace of the matrix Ad is

$$\tau (A_{d}) = - (a_{1} + c_{1}) = - \frac{C_{a} + C_{v}}{C_{a} C_{v} R_{c}} - \frac{C_{d} + C_{v}}{C_{v} C_{d} R_{p}} < 0, $$

and the trace of the matrix As is

$$\tau (A_{s}) = - (a_{2} + b_{2}) = - \frac{C_{a} + C_{v}}{C_{a} C_{v} R_{c}} - \frac{C_{a} + C_{s}}{C_{a} C_{s} R_{a}} < 0. $$

Taking into account that τ2(Ad)>4Δ(Ad) and τ2(As)>4Δ(As), it follows that both matrices Ad and As have negative real eigenvalues, which implies the equilibrium points are stable nodes.

We denote the equilibrium point for the diastole system as \(P_{d}^{*} = - A_{d}^{-1}\,b_{d}\) and for the systole system as \(P_{s}^{*} = - A_{s}^{-1}\,b_{s}\).

The time period for the diastole system is taken in our computations as t1=0.7 and for the systole system as t2=0.3. Starting the dynamics at the initial point P(t=0)=P0 the value of the solution at the end of the diastole period is

$$P_{1} \equiv P(t_{1}) = \exp(t_{1} A_{d}) \left(P_{0} - P_{d}^{*} \right) + P_{d}^{*}, $$

and at the end of the systole period is

$$P_{2} \equiv P (t_{1} + t_{2}) = \exp (t_{2} A_{s}) \left(P(t_{1}) - P_{s}^{*} \right) + P_{s}^{*}. $$

After one full period T=t1+t2 the solution is given by the mapping P0P2 given by

$$P_{2} = \exp(t_{2} A_{s}) \left(\exp(t_{1} A_{d}) \left(P_{1} - P_{d}^{*} \right) + P_{d}^{*} - P_{s}^{*} \right) + P_{s}^{*} $$

which has a unique stable fixed point provided that the spectral radius of M= exp(t2As) exp(t1Ad) is less than one. This holds true because the matrices As and Ad both have negative real eigenvalues. Existence of the stable fixed point implies the existence of a limiting periodic orbit for our switching from systole to diastole ODE system.

To find the coordinates where the limiting periodic orbit switches from one trajectory to the other and back we solve the system of the equations

$$ \left\{ \begin{array}{ll} P_{2} = \exp(t_{2} A_{s}) \left(\exp(t_{1} A_{d}) \left(P_{1} - P_{d}^{*} \right) + P_{d}^{*} - P_{s}^{*} \right) + P_{s}^{*} \\ P_{1} = \exp(t_{1} A_{d}) \left(\exp(t_{2} A_{s}) \left(P_{2} - P_{s}^{*} \right) + P_{s}^{*} - P_{d}^{*} \right) + P_{d}^{*} \end{array} \right.. $$
(9)

Denote the two matrices

$$M_{1} = (I - \exp(t_{2} A_{s}) \exp(t_{1} A_{d}))^{-1} \quad \text{and} \quad M_{2} = (I - \exp(t_{1} A_{d}) \exp(t_{2} A_{s}))^{-1}, $$

and the two vectors

$$v_{1} = - \exp(t_{2} A_{s}) \exp(t_{1} A_{d}) P_{d}^{*} + \exp(t_{2} A_{s}) P_{d}^{*} - \exp(t_{2} A_{s}) P_{s}^{*} + P_{s}^{*}, $$

and

$$v_{2} = - \exp(t_{1} A_{d}) \exp(t_{2} A_{s}) P_{s}^{*} + \exp(t_{1} A_{d}) P_{s}^{*} - \exp(t_{1} A_{d}) P_{d}^{*} + P_{d}^{*}, $$

then the limiting cardiac cycle is defined by P1=M1 v1 and P2=M2 v2.

In addition to diastole and systole, the cardiac cycle consists of two isovolumetric phases, during which both heart valves are closed, and the heart undergoes a change in pressure in response to a change in its shape, while maintaining a constant blood volume. Isovolumetric contraction occurs following diastole, during which the heart muscle contracts, increasing the pressure until the aortic valve opens to start systole. Isovolumetric relaxation occurs following systole, during which the heart muscle relaxes, decreasing the pressure until the pulmonary vein valve opens. In our model, which instantaneously switches from diastole to systole, the heart pressure Ph is determined in a way that is consistent with the isovolumetric constraint. In particular, during systole,

$$ \left\{ \begin{array}{ll} V_{h} = V_{T} - \left(V_{a}^{0}+V_{v}^{0}+C_{a}P_{a}+C_{v}P_{v} \right),\\ P_{h} = \left(V_{h}-V_{s}^{0} \right)/C_{s}, \end{array} \right. $$
(10)

and during diastole,

$$ \left\{ \begin{array}{ll} V_{h} = V_{T} - \left(V_{a}^{0}+V_{v}^{0}+C_{a}P_{a}+C_{v}P_{v} \right),\\ P_{h} = \left(V_{h}-V_{d}^{0}\right)/C_{d}. \end{array} \right. $$
(11)

Consequently, while Pa and Pv are continuous functions of time, Ph experiences jump discontinuities at the transitions between diastole and systole.

Simulations can be done by sequentially integrating the systolic and diastolic equations, and repeating. With model parameter values taken from the table, the simulations of the model equations exhibited realistic values. As shown in Fig. 4, the stroke volume (the amount of blood pumped out of the heart in one heartbeat) was found to be approximately 70 mL, which is consistent with typical values. The aortic pressure Pa varied between approximately 70 mm Hg (diastolic) and 120 mm Hg (systolic) within a typical period of 1 second, as shown in Fig. 4. These values are within the physiological range and the trend is consistent with physiological expectations. The pulmonary venous pressure Ppv, which is a surrogate for the atrial pressure, varies between approximately 2.5 mm Hg and 22.1 mm Hg. These values are also within the physiological range. The trends are reasonably consistent with expectations given our model assumptions.

Fig. 4
figure4

Heart volume (left) and heart pressure (right) as a function of time under normal Fontan conditions

Pulmonary vascular resistance Rp is known to increase in Fontan failure and an increase in this resistance is known to lead to a decrease in cardiac output. This model can be used to demonstrate the impact of pulmonary vascular resistance on cardiac output. Figure 3 shows the change in average cardiac output as a function of pulmonary vascular resistance for two different heart rates. As expected, the average cardiac output decreases with increasing resistance. What is interesting is that there is a change in slope of the curves at an inflection point corresponding to Rp≈3.60 mm Hg/min/L for a heart rate of 60 beats/min and Rp≈3.65 mm Hg/min/L for a heart rate of 120 beats/min. After this inflection point, the cardiac output decreases more quickly for a given change in resistance than before this inflection point, suggesting that something changes at this point with regards to Fontan failure and this change is dependent on heart rate. The exact mechanism behind this inflection point is unknown at this time and further research is required to determine its cause.

Pulmonary resistance also has an impact on the cardiac pressure-volume curve. As shown in the left panel of Fig. 5, the cardiac pressure-volume curve shifts to the left (i.e. decreased cardiac volumes) for the case of high pulmonary resistance. What this means is that the basal volume of blood in the heart has decreased as a result of this increase in resistance. For the present case, the basal volume of the heart has decreased to almost zero, implying that a further increase in resistance would result in an insufficient amount of blood returning to the heart, which consequently would reduce the cardiac output. Conversely, we see the opposite effect in the right panel Fig. 5, which shows the cardiac pressure-volume curve shifted to the right (i.e. increased cardiac volumes) for the case of high heart rate. By increasing the heart rate for a fixed stroke volume, the cardiac output would increase, resulting in an increase in the amount of blood being pumped to the body and returning to the heart.

Fig. 5
figure5

The cardiac pressure-volume cycle from high pulmonary resistance (left) and high heart rate (right)

Figure 6 shows an estimate of the pressure drop as a function of distance from the heart for healthy and failing Fontan patients based on clinically measured pressure catheter data and approximate distances from the heart for the pressure measurement locations. This figure illustrates that the majority of the pressure drop occurs near the heart in the systemic arteries and that furthest away from the heart, in the total cavopulmonary connection and the pulmonary circulation, the pressures are low and nearly constant.

Fig. 6
figure6

Blood pressure values (systolic (red), diastolic (green), mean (blue)) for a healthy Fontan patient as a function of distance from the heart

Spatially inhomogeneous PDE models of blood pressure distribution

In this section, our approach to modelling blood flow in the Fontan circulation is extended to a PDE model for both the biventricular circulation and the Fontan circulation. The PDE model has the advantage of allowing for spatial variation of model parameters such as compliance and resistance and allowing all vessels to have both compliance and resistance. This can potentially allow for more personalization of the model to an individual patient, which should improve the accuracy and predictive capabilities of the model. Furthermore, with piecewise constant values of the model parameters, the PDE model should show a similar behavior to the ODE model, giving us assurances as to the fidelity of the PDE approach.

To model the circulatory system as a continuous flow network in a resistive compliance vessel, we assume that blood flow is a Stokes flow, i.e. the Reynolds number is sufficiently small to allow us to neglect inertial effects. Consequently, the flux in a cylindrical tube is a Poiseuille flow for which

$$ Q = - \frac{ A^{2} }{ 8 \pi \mu} \frac{\partial P}{\partial x}, $$
(12)

where P is the local pressure, A is the cross-sectional area, and μ is the fluid viscosity. Now we assume that a vessel is a linear compliance vessel with A=A0+C P, where C is the compliance. This leads to a flux relationship for a single vessel

$$ Q = - \frac{ (A_{0} + C\,P)^{2} }{ 8 \pi \mu} \frac{\partial P}{\partial x}. $$
(13)

If we have a total number of N parallel vessels all with cross-section area A, the flux is

$$ Q = - \frac{ N \, (A_{0} + C\,P)^{2} }{ 8 \pi \mu} \frac{\partial P}{\partial x} \equiv -q(x,P) \, \frac{\partial P}{\partial x}. $$
(14)

Notice that in the limit C→0, this reduces to Ohm’s Law (as it must)

$$ Q = -\tfrac{1}{R} \, \tfrac{\partial P}{\partial x}, $$
(15)

where \(R = \frac {8 \pi \mu }{N\,A_{0}^{2}}\) is the resistance per unit length. When combined with the conservation law (the total volume of circulating blood is conserved)

$$ \frac{\partial A}{ \partial t} + \frac{\partial Q}{\partial x} = 0, $$
(16)

this yields

$$ C \, \frac{\partial P}{\partial t} = \frac{\partial}{\partial x} \left(q(x,P) \tfrac{\partial P}{\partial x} \right), $$
(17)

which is a nonlinear parabolic partial differential equation for P(x,t) with spatially variable coefficients. In general C=C(x)≥0, A0=A0(x)≥ inf(A0)>0, and N=N(x)≥1.

Boundary conditions for normal circulation

For the normal circulation (see Fig. 7), there are two ventricles, the left and the right ventricles, each of which satisfy a volume-compliance relationship of the form

$$ V = V_{0} + C\, P. $$
(18)
Fig. 7
figure7

Circuit diagram for the normal circulation

The basal volumes and compliances are different during systole and diastole, that is

$$ V_{lh}(t) = \left\{ \begin{array}{ll} V_{ld}^{0} + C_{ld} \, P_{pv} \left(L_{l}^{-},t\right), & \text{during diastole} \\ V_{ls}^{0} + C_{ls} \, P_{A}\left(0^{+},t\right), & \text{during systole} \end{array} \right., $$
(19)
$$ V_{rh}(t) = \left\{ \begin{array}{ll} V_{rd}^{0} + C_{rd} \, P_{V} \left(L_{r}^{-},t\right), & \text{during diastole} \\ V_{rs}^{0} + C_{rs} \, P_{pa} \left(L_{r}^{+},t \right), & \text{during systole} \end{array} \right.. $$
(20)

Note that in Eqs. (19) and (20), the subscripts l and r refer to the left and right ventricles, the subscripts d and s refer to diastole and systole. In this two ventricle model, the 7 pressures are systemic venous pressure Pv, vena cava pressure PV, pulmonary arterial pressure Ppa, pulmonary pressure Pp, pulmonary venous pressure Ppv, aortic pressure PA, and systemic arterial pressure Pa.

During systole the input valves (mitral and tricuspid) are closed and output valves (pulmonary and aortic) are open, while during diastole the opposite is the case. For the normal circulation, we let 0<x<Lr be the systemic circulation, and Lr<x<Ll be the pulmonary circulation, and of course the domain 0<x<Ll is periodic.

For convenience, we use the following notation, during systole: systemic pressure is \(P_{s}^{1} := P_{A}\), pulmonary pressure is \(P_{p}^{1} := P_{pa}\) and during diastole: systemic pressure is \(P_{s}^{2} := P_{pv}\), pulmonary pressure is \(P_{p}^{2} := P_{V}\). Systemic and pulmonary pressures are everywhere continuous functions except two points x=0 and x=Lr where discontinuity jumps correspond to the left and right ventricle pressure jumps during the switch between systole and diastole phases.

Initial-boundary value problem (systolic regime: 0<t<t 1)

Assume that at the initial time t=0 the pressure is P(x,0)=P0(x). Systemic circulation model \(P_{s}^{1}\) is given by the partial differential equation:

$$ C(x) \, \frac{\partial P}{\partial t} = \frac{\partial}{\partial x} \left(q(x,P) \, \frac{\partial P}{\partial x} \right) $$
(21)

and conditions:

$$ \left\{ \begin{array}{ll} \text{Problem} \;\; P_{s}^{1}: & 0 < t < t_{1}, \;\; 0 < x < L_{r}, \\ \text{Initial data}: & P^{1}_{s\,0}(x) = P_{0}(x), \\ \text{Boundary conditions for} \;\; P_{s}^{1}: & B_{s}^{1}(t) : = P_{s}^{1}(0,t), \\ \text{Dynamic Flux BC at} \;\; x = 0: & C_{ls} \, \frac{{dB}_{s}^{1}}{dt} = q \left(0,B_{s}^{1} \right) \, \frac{\partial P_{s}^{1}}{\partial x} (0,t), \\ \text{Neumann BC at} \;\; x = L_{r}: & P^{1}_{s\,x}(L_{r},t) = 0. \\ \end{array} \right. $$
(22)

Pulmonary circulation model \(P_{p}^{1}\) is given by the partial differential equation (21) and conditions:

$$ \left\{ \begin{array}{ll} \text{Problem} \;\; P_{p}^{1}: & 0 < t < t_{1}, \;\; L_{r} < x < L_{l}, \\ \text{Initial data}: & P^{1}_{p\,0}(x) = P_{0}(x), \\ \text{Boundary conditions for} \;\; P_{p}^{1}: & B_{p}^{1}(t) : = P_{p}^{1}(L_{r},t), \\ \text{Dynamic Flux BC at} \;\; x = L_{r}: & C_{rs} \, \frac{{dB}_{p}^{1}}{dt} = q \left(L_{r},B_{p}^{1} \right) \frac{\partial P_{p}^{1}}{\partial x} (L_{r},t), \\ \text{Neumann BC at} \;\; x = L_{l}: & P^{1}_{p\,x}(L_{l},t) = 0. \\ \end{array} \right. $$
(23)

These boundary conditions are defined in such a way as to ensure conservation of the total volume

$$V_{T}= V_{lh}(t) + V_{rh}(t) + {\int\nolimits}_{0}^{L_{l}} A(x,t)\,dx $$

during systole. Indeed, from (16), (19), (20) and the dynamic flux boundary conditions it follows directly that \(\frac {d}{dt} V_{T} = 0\).

Initial-boundary value problem (switch from systole to diastole at: t=t 1)

Initial data for the systemic circulation model \(P_{s}^{2}\) (and for \(B_{s}^{2}(t) : = P_{s}^{2}(L_{r},t)\)) at the beginning of diastole (conservation of volume, initial data, and interpolation):

$$ \left\{ \begin{array}{l} V_{ls}^{0} + C_{ls} \; B_{s}^{1}(t_{1}) = V_{ld}^{0} + C_{ld} \; B_{s}^{2}(t_{1}), \\ P_{s}^{2}(x, t_{1}) = P_{s}^{1}(x, t_{1}), \; \text{for} \;\; x \in (0, L_{r} - \epsilon), \\ P_{s}^{2}(L_{r}, t_{1}) = B_{s}^{2}(t_{1}), \; \text{and} \; P_{s}^{2}(x, t_{1}) \; \text{is smooth for} \; x \in (L_{r} - \epsilon, L_{r}). \\ \end{array} \right. $$
(24)

Initial data for the pulmonary circulation model \(P_{p}^{2}\) (and for \(B_{p}^{2}(t) : = P_{p}^{2}(L_{l},t)\)) at the beginning of diastole (conservation of volume, initial data, and interpolation):

$$ \left\{ \begin{array}{l} V_{rs}^{0} + C_{rs} \; B_{p}^{1}(t_{1}) = V_{rd}^{0} + C_{rd} \; B_{p}^{2}(t_{1}), \\ P_{p}^{2}(x, t_{1}) = P_{p}^{1}(x, t_{1}), \,\, \text{for} \,\,\, x \in (L_{r}, L_{l} - \epsilon),\\ P_{p}^{2}(L_{l}, t_{1}) = B_{p}^{2}(t_{1}), \,\, \text{and} \,\, P_{p}^{2}(x, t_{1}) \,\, \text{is smooth for} \,\, x \in (L_{r}, L_{l} - \epsilon). \\ \end{array} \right. $$
(25)

Initial-boundary value problem (diastolic regime: t 1<t<t 2)

Systemic circulation model \(P_{s}^{2}\) is given by the partial differential Eq. (21) and conditions:

$$ \left\{ \begin{array}{ll} \text{Problem} \,\,\, P_{s}^{2}: & t_{1} < t < t_{2}, \,\,\, 0 < x < L_{r}, \\ \text{Initial data}: & P^{2}_{s} (x, t_{1}), \\ \text{Boundary conditions for} \,\,\, P_{s}^{2}: & B_{s}^{2}(t) : = P_{s}^{2}(L_{r},t), \\ \text{Neumann BC at} \,\,\, x = 0: & P^{2}_{s\,x}(0,t) = 0, \\ \text{Dynamic Flux BC at} \,\,\, x = L_{r}: & C_{ld} \, \frac{{dB}_{s}^{2}}{dt} = q \left(L_{r}, B_{s}^{2} \right) \, \frac{\partial P_{s}^{2}}{\partial x} (L_{r},t). \\ \end{array} \right. $$
(26)

Pulmonary circulation model \(P_{p}^{2}\) is given by the partial differential Eq. (21) and conditions:

$$ \left\{ \begin{array}{ll} \text{Problem} \,\,\, P_{p}^{2}: & t_{1} < t < t_{2}, \,\,\, L_{r} < x < L_{l}, \\ \text{Initial data}: & P^{1}_{p} (x, t_{1}), \\ \text{Boundary conditions for} \,\,\, P_{p}^{2}: & B_{p}^{2}(t) : = P_{p}^{2}(L_{l},t), \\ \text{Neumann BC at} \,\,\, x = L_{r}: & P^{2}_{p\,x}(L_{r},t) = 0, \\ \text{Dynamic Flux BC at} \,\,\, x = L_{l}: & C_{rd} \, \frac{{dB}_{p}^{2}}{dt} = q \left(L_{l},B_{p}^{2} \right)\, \frac{\partial P_{p}^{2}}{\partial x} (L_{l},t). \\ \end{array} \right. $$
(27)

Again, it follows directly from (16), (19), (20) and the dynamic flux boundary conditions that during diastole \(\frac {d}{dt} V_{T} = 0\).

Initial-boundary value problem (switch from diastole to systole regime: t=t 2)

Initial data for the systemic circulation model \(P_{s}^{1}\) (and for \(B_{s}^{1}(t) : = P_{s}^{1}(0,t)\)) at the beginning of systole (conservation of volume, initial data, and interpolation):

$$ \left\{ \begin{array}{l} V_{ls}^{0} + C_{ls}\,\, B_{s}^{1}(t_{2}) = V_{ld}^{0} + C_{ld} \,\, B_{s}^{2}(t_{2}), \\ P_{s}^{1}(x, t_{2}) = P_{s}^{2}(x, t_{2}), \,\, \text{for} \,\,\, x \in (\epsilon, L_{r}),\\ P_{s}^{1}(0, t_{2}) = B_{s}^{1}(t_{2}), \,\, \text{and} \,\, P_{s}^{1}(x, t_{2}) \,\, \text{is smooth for} \,\, x \in (0, \epsilon). \\ \end{array} \right. $$
(28)

Initial data for the pulmonary circulation model \(P_{p}^{1}\) (and for \(B_{p}^{1}(t) : = P_{p}^{1}(L_{r},t)\)) at the beginning of systole (conservation of volume, initial data, and interpolation):

$$ \left\{ \begin{array}{l} V_{rs}^{0} + C_{rs}\,\, B_{p}^{1}(t_{2}) = V_{rd}^{0} + C_{rd} \,\, B_{p}^{2}(t_{2}), \\ P_{p}^{1}(x, t_{2}) = P_{p}^{2}(x, t_{2}), \,\, \text{for} \,\,\, x \in (L_{r} + \epsilon, L_{l}),\\ P_{p}^{1}(L_{r}, t_{2}) = B_{p}^{1}(t_{2}), \,\, \text{and} \,\, P_{p}^{1}(x, t_{2}) \,\, \text{is smooth for} \,\, x \in (L_{r}, L_{r} +\epsilon). \\ \end{array} \right. $$
(29)

The problem is periodic in time (i.e systolic and diastolic regimes are repeated).

Boundary conditions for Fontan circulation

The Fontan blood flow circulation has only one ventricle, so the model has only a single loop 0<x<Ll. The basal volumes and compliances of the one ventricle heart are also different during systole and diastole, that is

$$ V_{h} = \left\{ \begin{array}{ll} V_{d}^{0} + C_{d} \, P_{pv}, & \text{during diastole} \\ V_{s}^{0} + C_{s} \, P_{A}, & \text{during systole} \end{array} \right.. $$
(30)

For convenience we use the following notation, during systole: blood pressure is P1:=PA and during diastole blood pressure is P2:=Ppv.

Initial-boundary value problem (systolic regime: 0<t<t 1)

Assume that at the initial time t=0 the pressure is P(x,0)=P0(x).

One heart circulation model P1 is given by the partial differential Eq. (21) and conditions:

$$ \left\{ \begin{array}{ll} \text{Problem} \,\,\, P^{1}: & 0 < t < t_{1}, \,\,\, 0 < x < L_{l}, \\ \text{Initial data}: & P^{1}_{0}(x) = P_{0}(x), \\ \text{Boundary conditions for} \,\,\, P^{1}: & B^{1}(t) : = P^{1}(0,t), \\ \text{Dynamic Flux BC at} \,\,\, x = 0: & C_{ls} \, \frac{dB^{1}}{dt} = q \left(0,B^{1} \right) \, \frac{\partial P^{1}}{\partial x} (0,t), \\ \text{Neumann BC at} \,\,\, x = L_{l}: & P^{1}_{x}(L_{l},t) = 0. \\ \end{array} \right. $$
(31)

Initial-boundary value problem (switch from systole to diastole at: t=t 1)

Initial data for the systemic circulation model P2 (and for B2(t):=P2(Ll,t)) at the beginning of diastole (conservation of volume, initial data, and interpolation):

$$ \left\{ \begin{array}{l} V_{s}^{0} + C_{s}\,\, B^{1}(t_{1}) = V_{d}^{0} + C_{d} \,\, B^{2}(t_{1}), \\ P^{2}(x, t_{1}) = P^{1}(x, t_{1}), \,\, \text{for} \,\,\, x \in (0, L_{l} - \epsilon),\\ P^{2}(L_{l}, t_{1}) = B^{2}(t_{1}), \,\, \text{and} \,\, P^{2}(x, t_{1}) \,\, \text{is smooth for} \,\, x \in (L_{l} - \epsilon, L_{l}). \\ \end{array} \right. $$
(32)

Initial-boundary value problem (diastolic regime: t 1<t<t 2)

Systemic circulation model P2 is given by the partial differential Eq. (21) and conditions:

$$ \left\{ \begin{array}{ll} \text{Problem} \,\,\, P^{2}: & t_{1} < t < t_{2}, \,\,\, 0 < x < L_{l}, \\ \text{Initial data}: & P^{1}(x, t_{1}), \\ \text{Boundary conditions for} \,\,\, P^{2}: & B^{2}(t) : = P^{2}(L_{l},t), \\ \text{Neumann BC at} \,\,\, x = 0: & P^{2}_{x}(0,t) = 0, \\ \text{Dynamic Flux BC at} \,\,\, x = L_{l}: & C_{ld} \, \frac{dB^{2}}{dt} = q \left(L_{l},B^{2} \right) \frac{\partial P^{2}}{\partial x} (L_{l},t).\\ \end{array} \right. $$
(33)

Initial-boundary value problem (switch from diastole to systole regime: t=t 2)

Initial data for the systemic circulation model P1 (and for B1(t):=P1(0,t)) at the beginning of systole (conservation of volume, initial data, and interpolation):

$$ \left\{ \begin{array}{l} V_{s}^{0} + C_{s}\,\, B^{1}(t_{2}) = V_{d}^{0} + C_{d} \,\, B^{2}(t_{2}), \\ P^{1}(x, t_{2}) = P^{2}(x, t_{2}), \,\, \text{for} \,\,\, x \in (\epsilon, L_{r}),\\ P^{1}(0, t_{2}) = B^{1}(t_{2}), \,\, \text{and} \,\, P^{1}(x, t_{2}) \,\, \text{is smooth for} \,\, x \in (0, \epsilon). \\ \end{array} \right. $$
(34)

The problem is periodic in time (i.e systolic and diastolic regimes are repeated). It is a direct computation to verify that with these boundary conditions \(\frac {d}{dt} V_{T} = 0\).

Well-posedness analysis of spatially inhomogeneous PDE model

Existence and uniqueness of the nonnegative solution in normal circulation

In this section we find restrictions on the parameters of the PDE model with dynamic flux boundary conditions for the case of the normal blood circulation for which a nonnegative solution exists and is unique. First, we show that the pressure P(x,t) stays bounded for any time t, then we obtain uniform in time bounds for the time derivative and for the gradient of P(x,t) for some range of parameter values. Second, we employ Grönwall lemma to prove uniqueness.

We start by introducing the following notation

$$\mathcal{Q}_{t_{1}}^{t_{2}} = \Omega_{r} \times (t_{1},t_{2}),\ \mathcal{Q}_{t_{2}} = \Omega_{r} \times (0,t_{2}), \ \Omega_{r} := (0,L_{r}), \ \Omega_{r}^{\epsilon} := (L_{r} - \epsilon, L_{r}). $$

Consider the equation

$$ C(x) P_{t} = (q(x,P) \, P_{x})_{x} $$
(35)

with initial and boundary conditions

$$ P_{1}(x,0) = P_{0}(x) \geq 0, $$
(36)
$$ C_{ls} P_{1,t} = q(x, \, P_{1}) P_{1,x} \text{ at} x = 0,\ P_{1,x} = 0 \text{ at} x = L_{r} $$
(37)

for all t(0,t1) (during systole);

$$ P_{2}(x,t_{1}) = \left\{ \begin{array}{c} P_{1}(x,t_{1}) \ \forall\,x \in [0,L_{r} -\epsilon], \\ f(x,t_{1}) \ \forall\,x \in (L_{r} -\epsilon,L_{r}], \end{array} \right. $$
(38)

where f(x,t1) is such that

$$ \int\limits_{\Omega_{r}^{\epsilon}} { C(x) f(x,t_{1}) dx} - C_{ld} f(L_{r},t_{1}) = \int\limits_{\Omega_{r}^{\epsilon}} { C(x) P_{1} (x,t_{1}) dx} + C_{ls} P_{1}(0,t_{1}), $$
(39)
$$ P_{2,x} = 0 \,\, \text{ at} x = 0, \,\, C_{ld} P_{2,t} = q(x,P_{2}) \, P_{2,x} \,\, \text{ at} \,\, x = L_{r} $$
(40)

for all t(t1,t2) (during diastole);

$$ P_{1}(x,t_{2}) = \left \{ \begin{array}{c} \tilde{f}(x,t_{2}) \ \forall\,x \in [0, \epsilon], \\ P_{2}(x,t_{2}) \ \forall\,x \in (\epsilon,L_{r}], \end{array} \right. $$
(41)

where \(\tilde {f}(x,t_{2})\) is such that

$$ \int\limits_{0}^{\epsilon} { C(x) \tilde{f}(x,t_{2}) dx} + C_{ls} \tilde{f}(0,t_{2}) = \int\limits_{0}^{\epsilon} { C(x) P_{2} (x,t_{2}) dx} - C_{ld} P_{2}(L_{r},t_{2}). $$
(42)

Let

$$ P(x,t) = \left \{ \begin{array}{c} P_{1}(x,t) \ \forall\,t \in (0,t_{1}) \\ P_{2}(x,t) \ \forall\,t \in [t_{1},t_{2}) \end{array} \right. $$
(43)

be a solution to problem (35)–(40) for all t(0,t2) such that

$$ P(x,t) = P(x,t+t_{2}). $$
(44)

First, we define a weak solution for our problem.

Definition 1

A non-negative function P(x,t) is said to be a periodic solution of the problem (35)–(40), i. e. P(x,t)=P(x,t+t2), if

$$P \in C_{x,t}^{\frac{1}{2},\frac{1}{4}} \left(\bar{\mathcal{Q}}_{t_{2}} \right) \cap L^{\infty} \left(0,t_{2};H^{1} (\Omega_{r}) \right), \; C^{\frac{1}{2}}(x)P_{t} \in L^{2} \left(\mathcal{Q}_{t_{2}} \right), $$
$$q(x,P) \, P_{x} \in L^{2} \left(0,t_{2};H^{1}(\Omega_{r}) \right), $$

and P(x,t) satisfies equation (35) in the sense that

$$\iint \limits_{\mathcal{Q}_{t_{2}}} {C(x) P_{t} \phi \,dx dt} - \iint \limits_{\mathcal{Q}_{t_{2}}} {(q(x,P) \, P_{x})_{x} \phi \,dx dt} = 0 $$

for any \(\phi \in L^{2}(\mathcal {Q}_{t_{2}})\) and ϕ(x,0)=ϕ(x,t2).

Here, \(C^{\alpha, \beta }_{x,t} \left (\bar {D} \right)\) is the space of Holder continuous in the closure of the domain D functions with the Holder exponents given by: α for x and β for t; Lp space is the Lebesgue space (absolute values of functions to the power p are Lebesgue integrable); H1 is the Sobolev space (functions and their gradients are Lebesgue integrable).

Our main result establishes parameter ranges for which non-negative solutions exist, as follows.

Theorem 1

If

$$C(x) \in C \left(\bar{\Omega}_{r} \right) : \inf C(x) > 0, \ \|C(x)\|_{1} < C_{ld}; \ C_{ls} \geqslant 0, \ C_{ld} > 0; $$
$$\inf N(x) > 0, \,\, \inf A_{0}(x) > 0,\ f(x,t_{1}) \in C^{0}(\bar{\Omega}_{r}^{\epsilon}), $$

initial data P0(x)H1(Ωr) are non-negative, and

$$\int\limits_{\Omega_{r}} { q(x,P_{0}) \, P_{0,x}^{2} dx} \leqslant \frac{1}{64 \pi \mu^{2} |\Omega_{r}|} \frac{(C_{ld} - \| C(x)\|_{1})}{C^{2}_{ld}} {\underset{\Omega_{r}}{\inf}} \left| \tfrac{N(x) A_{0}^{4}(x)}{ C^{2}(x)} \right|, $$
$$M:= \int\limits_{\Omega_{r}} { C(x) P_{0} (x) dx} + C_{ls}P_{0} (0) > 0, $$

then the problem (35)–(40) has a unique non-negative solution in the sense of the Definition 1.

Here, C0 is the space of continuous functions and .p is the norm in the Lebesgue space Lp.

We proceed by presenting well-posedness conditions for the second part of the interval, namely (Lr,Ll) where, to compare to the first part (0,Lr), Neumann amd dynamic flux boundary conditions are switched. Consider the following problem

$$ C(x) P_{t} = (q(x,P) \, P_{x})_{x} $$
(45)

with initial and boundary conditions

$$ P_{1}(x,0) = P_{0}(x) \geqslant 0, $$
(46)
$$ C_{rs} P_{1,t} = q(x,P_{1}) \, P_{1,x} \text{ at} x = L_{r},\ P_{1,x} = 0 \text{ at} x = L_{l} $$
(47)

for all t(0,t1);

$$ P_{2}(x,t_{1}) = \left\{ \begin{array}{c} P_{1}(x,t_{1}) \ \forall\,x \in [L_{r},L_{l} -\epsilon], \\ g(x,t_{1}) \ \forall\,x \in (L_{l} -\epsilon,L_{l}], \end{array} \right. $$
(48)

where g(x,t1) such that

$$ \int\limits_{\Omega_{l}^{\epsilon}} { C(x) g(x,t_{1}) dx} - C_{rd} g(L_{l},t_{1}) = \int\limits_{\Omega_{l}^{\epsilon}} { C(x) P_{1} (x,t_{1}) dx} + C_{rs} P_{1}(0,t_{1}), $$
(49)
$$ P_{2,x} = 0 \,\, \text{ at} \,\, x = L_{r}, \ C_{rd} P_{2,t} = q(x,P_{2}) \, P_{2,x} \,\, \text{ at} \,\, x = L_{l} $$
(50)

for all t(t1,t2);

$$ P_{1}(x,t_{2}) = \left\{ \begin{array}{c} \tilde{g}(x,t_{2}) \ \forall\,x \in [L_{r}, L_{r}+\epsilon], \\ P_{2}(x,t_{2}) \ \forall\,x \in (L_{r} + \epsilon,L_{l}], \end{array} \right. $$
(51)

where \(\tilde {g}(x,t_{2})\) such that

$$ \int\limits_{L_{r}}^{L_{r}+\epsilon} { C(x) \tilde{g}(x,t_{2}) dx} + C_{rs} \tilde{g}(L_{r},t_{2}) = \int\limits_{L_{r}}^{L_{r}+\epsilon} { C(x) P_{2} (x,t_{2}) dx} - C_{rd} P_{2}(L_{l},t_{2}). $$
(52)

Let

$$ P(x,t) = \left\{ \begin{array}{c} P_{1}(x,t) \ \forall\,t \in (0,t_{1}), \\ P_{2}(x,t) \ \forall\,t \in [t_{1},t_{2}), \end{array} \right. $$
(53)

be a solution to problem (45)–(50) for all t(0,t2) such that

$$ P(x,t) = P(x,t+t_{2}). $$
(54)

Introduce the following notation

$$\mathcal{Q}_{t_{1}}^{t_{2}} = \Omega_{l} \times (t_{1},t_{2}),\; \mathcal{Q}_{t_{2}} = \Omega_{l} \times (0,t_{2}), \; \Omega_{l} := (L_{r},L_{l}), \; \Omega_{l}^{\epsilon} := (L_{l} - \epsilon, L_{l}). $$

Definition 2

A non-negative function P(x,t) is said to be a periodic solution of the problem (45)–(50), i.e. P(x,t)=P(x,t+t2), if

$$P \in C_{x,t}^{\frac{1}{2},\frac{1}{4}} \left(\bar{\mathcal{Q}}_{t_{2}} \right) \cap L^{\infty} \left(0,t_{2};H^{1}(\Omega_{l}) \right),\; C^{\frac{1}{2}}(x)P_{t} \in L^{2} \left(\mathcal{Q}_{t_{2}} \right), $$
$$q(x,P) \, P_{x} \in L^{2} \left(0,t_{2};H^{1}(\Omega_{l}) \right), $$

and P(x,t) satisfies equation (45) in the sense that

$$\iint \limits_{\mathcal{Q}_{t_{2}}} {C(x) P_{t} \phi \,dx dt} - \iint \limits_{\mathcal{Q}_{t_{2}}} {\left(q(x,P) \, P_{x} \right)_{x} \phi \,dx dt} =0 $$

for any \(\phi \in L^{2}(\mathcal {Q}_{t_{2}})\) and ϕ(x,0)=ϕ(x,t2).

Theorem 2

Assume that

$$C(x) \in C \left(\bar{\Omega}_{l} \right) : \inf C(x) > 0, \ \|C(x)\|_{1} < C_{rd}; \ C_{rs} \geqslant 0, \ C_{rd} > 0; $$
$$\inf N(x) > 0, \,\, \inf A_{0}(x) > 0,\ g(x,t_{1}) \in C^{0}\left(\bar{\Omega}_{l}^{\epsilon} \right), $$

and initial data P0(x)H1(Ωl) is non-negative satisfying

$$\int\limits_{\Omega_{l}} { q(x,P_{0}) \, P_{0,x}^{2} dx} \leqslant \frac{1}{64 \pi \mu^{2} |\Omega_{l}|} \frac{ (C_{rd} - \| C(x)\|_{1}) }{C^{2}_{rd}} {\underset{\Omega_{l}}{\inf}} \left| \tfrac{N(x) A_{0}^{4}(x)}{ C^{2}(x)} \right|, $$
$$M: = \int\limits_{\Omega_{l}} { C(x) P_{0} (x) dx} + C_{rs}P_{0} (0) > 0, $$

then the problem (45)–(50) admits a unique non-negative solution in the sense of Definition 2.

The proof of Theorem 2 is similar to that of Theorem 1. Finally, to get well-posedness for the whole interval (0,Ll), the restrictions on the parameter values obtained in Theorem 1 should be combined with the restrictions obtained in Theorem 2.

Existence and uniqueness of the nonnegative solution in Fontan case

Let us introduce the following notation

$$\mathcal{Q}_{t_{1}}^{t_{2}} = \Omega_{L} \times (t_{1},t_{2}),\ \mathcal{Q}_{t_{2}} = \Omega_{L} \times (0,t_{2}), \; \Omega_{L} := (0,L_{l}), \ \Omega_{L}^{\epsilon} := (L_{l} - \epsilon, L_{l}). $$

Consider the following equation

$$ C(x) P_{t} = \left(q(x,P) \, P_{x} \right)_{x} $$
(55)

with initial and boundary conditions

$$ P_{1}(x,0) = P_{0}(x) \geqslant 0, $$
(56)
$$ C_{ls} P_{1,t} = q(x,P_{1}) \, P_{1,x} \text{ at} x = 0,\ P_{1,x} = 0 \text{ at} x = L_{l} $$
(57)

for all t(0,t1);

$$ P_{2}(x,t_{1}) = \left\{ \begin{array}{c} P_{1}(x,t_{1}) \ \forall\,x \in [0,L_{l} -\epsilon], \\ k(x,t_{1}) \ \forall\,x \in (L_{l} -\epsilon,L_{l}], \end{array} \right. $$
(58)

where k(x,t1) such that

$$ \int\limits_{\Omega_{L}^{\epsilon}} { C(x) k(x,t_{1}) dx} - C_{ld} k(L_{l},t_{1}) = \int\limits_{\Omega_{L}^{\epsilon}} { C(x) P_{1} (x,t_{1}) dx} + C_{ls} P_{1}(0,t_{1}), $$
(59)
$$ P_{2,x} = 0 \,\, \text{ at} \,\, x = 0, \ C_{ld} P_{2,t} = q(x,P_{2}) \, P_{2,x} \,\, \text{ at} \,\, x = L_{l} $$
(60)

for all t(t1,t2);

$$ P_{1}(x,t_{2}) = \left\{ \begin{array}{c} \tilde{k}(x,t_{2}) \ \forall\,x \in [0, \epsilon], \\ P_{2}(x,t_{2}) \ \forall\,x \in (\epsilon,L_{l}], \end{array} \right. $$
(61)

where \(\tilde {k}(x,t_{2})\) such that

$$ \int\limits_{0}^{\epsilon} { C(x) \tilde{k}(x,t_{2}) dx} + C_{ls} \tilde{k}(0,t_{2}) = \int\limits_{0}^{\epsilon} { C(x) P_{2} (x,t_{2}) dx} - C_{ld} P_{2}(L_{l},t_{2}). $$
(62)

Let

$$ P(x,t) = \left\{ \begin{array}{c} P_{1}(x,t) \; \forall \, t \in (0,t_{1}), \\ P_{2}(x,t) \; \forall\, t \in [t_{1},t_{2}), \end{array} \right. $$
(63)

be a solution to problem (55)–(60) for all t(0,t2) such that

$$ P(x,t) = P(x,t+t_{2}). $$
(64)

Definition 3

A non-negative function P(x,t) is said to be a periodic solution of the problem (55)–(60), i.e. P(x,t)=P(x,t+t2), if

$$P \in C_{x,t}^{\frac{1}{2},\frac{1}{4}} \left(\bar{\mathcal{Q}}_{t_{2}} \right) \cap L^{\infty} \left(0,t_{2};H^{1}(\Omega_{L}) \right),\; C^{\frac{1}{2}}(x)P_{t} \in L^{2}(\mathcal{Q}_{t_{2}}), $$
$$q(x,P) \, P_{x} \in L^{2} \left(0,t_{2};H^{1}(\Omega_{L}) \right), $$

and P(x,t) satisfies equation (55) in the sense that

$$\iint\limits_{\mathcal{Q}_{t_{2}}} {C(x) P_{t} \phi \,dx dt} - \iint\limits_{\mathcal{Q}_{t_{2}}} {(q(x,P) \, P_{x})_{x} \phi \,dx dt} =0 $$

for any \(\phi \in L^{2}(\mathcal {Q}_{t_{2}})\) and ϕ(x,0)=ϕ(x,t2).

Theorem 3

Assume that

$$C(x) \in C \left(\bar{\Omega}_{L} \right) : \inf C(x) > 0, \ \|C(x)\|_{1} < C_{ld}; \ C_{ls} \geqslant 0, \ C_{ld} > 0; $$
$$\inf N(x) > 0, \, \, \inf A_{0}(x) > 0,\ g(x,t_{1}) \in C^{0} \left(\bar{\Omega}_{L}^{\epsilon} \right), $$

and initial data P0(x)H1(ΩL) is non-negative satisfying

$$\int\limits_{\Omega_{L}} { q(x,P_{0}) \, P_{0,x}^{2} dx} \leqslant \frac{1}{64 \pi \mu^{2} |\Omega_{L}|} \frac{ (C_{ld} - \| C(x)\|_{1}) }{C^{2}_{ld}} {\underset{\Omega_{L}}{\inf}} \left| \tfrac{N(x) A_{0}^{4}(x)}{C^{2}(x)} \right|, $$
$$M:= \int \limits_{\Omega_{L}} { C(x) P_{0} (x) dx} + C_{ls}P_{0} (0) > 0, $$

then the problem (55)–(60) admits a unique positive solution in the sense of Definition 3.

The proof of Theorem 3 is similar to that of Theorem 1.

Proof of Theorem 1

Note that the Eq. (35) becomes degenerate if \(P = - \inf \frac {A_{0}(x)}{C(x)}\). Hence, we start by constructing a sequence of positive approximations of initial data P0n>0. We can choose for example \(P_{0n}(x) = P_{0}(x)+ \frac {1}{n}\) (if n then P0n(x)→P0(x)). These approximations allow us to apply the theoretical background developed for uniformly parabolic equations to our problem. By taking n, as a limit, we obtain a weak solution P(x,t). We omit some technical details and derive only a priori estimates which imply the existence of this weak solution. We need to specify conditions on the smoothing functions f(x,t) and \(\tilde {f}(x,t)\) such that total volume is conserved on the whole time interval [0,t2].

Volume conservation: Integrating (35) on \(\mathcal {Q}_{t}\), due to (37) and (36), we arrive at

$$ \begin{aligned} \int\limits_{\Omega_{r}} { C(x) P_{1} (x,t) dx} &+ C_{ls} P_{1} (0,t) = \\ & \quad \int\limits_{\Omega_{r}} { C(x) P_{0} (x) dx} + C_{ls}P_{0} (0) =: M > 0 \ \forall\,t\in [0,t_{1}). \end{aligned} $$
(65)

Integrating (35) on \(\mathcal {Q}_{t_{1}}^{t}\), due to (40) and (38), we have

$$ \begin{aligned} \int\limits_{\Omega_{r}} { C(x) P_{2} (x,t) dx} &+ C_{ld} P_{2} (L_{r},t_{1}) = \\ & \qquad \quad \int\limits_{\Omega_{r}} { C(x) P_{2}(x,t_{1}) dx} + C_{ld}P_{2} (L_{r},t) \ \forall\,t\in [ t_{1},t_{2}). \end{aligned} $$
(66)

By (65) and (66), we obtain

$$ \begin{aligned} \int\limits_{\Omega_{r}} { C(x) P_{2} (x,t) dx} &+ \int\limits_{\Omega_{r}^{\epsilon}} { C(x) (P_{1} (x,t_{1}) - f(x,t_{1})) dx} + C_{ld}(f (L_{r},t_{1}) - P_{2}(L_{r},t)) = \\ & \qquad \qquad \quad \int\limits_{\Omega_{r}} { C(x) P_{0}(x) dx} + C_{ls}(P_{0}(0) - P_{1} (0,t_{1})). \end{aligned} $$
(67)

Due to (39), from (67) we get

$$ \int\limits_{\Omega_{r}} { C(x) P_{2} (x,t) dx} - C_{ld} P_{2}(L_{r},t) = M \ \forall\,t\in [ t_{1},t_{2}). $$
(68)

Moreover, by (41) and (68) we find that

$$\begin{aligned} & \int\limits_{\Omega_{r}} { C(x) P_{1} (x,t_{2}) dx} + C_{ls} P_{1}(0,t_{2}) = \\ & \int\limits_{0}^{\epsilon} { C(x) \tilde{f}(x,t_{2}) dx} + \int \limits_{\epsilon}^{L_{r}} { C(x) P_{2}(x,t_{2}) dx} + C_{ls} \tilde{f}(0,t_{2}) =\\ & \qquad \qquad \qquad \int\limits_{0}^{\epsilon} {C(x) \left(\tilde{f}(x,t_{2}) - P_{2}(x,t_{2}) \right) dx} + C_{ld}P_{2}(L_{r},t_{2}) + C_{ls} \tilde{f} (0,t_{2}) + M, \end{aligned} $$

whence, due to (42), we have

$$ \int\limits_{\Omega_{r}} { C(x) P_{1} (x,t_{2}) dx} + C_{ls} P_{1}(0,t_{2}) = M. $$
(69)

Consequently, total volume of the left heart and systolic circulation is identical at t=0 and t=t2.

Below we show how to prove, using Moser’s method [20], that the blood pressure P(x,t) stays bounded on the whole time interval [0,t2]. We start by showing that P(x,t) is bounded in L(0,t2;L2(Ωr)) then we show that for any α>0 the solution P(x,t) is bounded in L(0,t2;Lα+2(Ωr)) and after that we take the limit α.

Boundedness: Multiplying (35) by P(x,t) and integrating along Ωr, due to (37), we have

$$ \frac{1}{2} \frac{d}{dt} \int\limits_{\Omega_{r}} { C(x) P^{2}(x,t) dx} + \int\limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx} = - \frac{1}{2} \frac{d}{dt} \left[ C_{ls} P^{2}(0,t) \right]. $$
(70)

Integrating (70) in time, we get

$$ \begin{aligned} \frac{1}{2} \int\limits_{\Omega_{r}} { C(x) P^{2}(x,t) dx} &+ \frac{1}{2}C_{ls} P^{2}(0,t) + \iint\limits_{\mathcal{Q}_{0}^{t_{1}}} { q(x,P) \, P_{x}^{2} dx dt} = \\ &\frac{1}{2} \int\limits_{\Omega_{r}} { C(x) P_{0}^{2}(x) dx} + \frac{1}{2}C_{ls} P_{0}^{2}(0) =: K_{0} \ \forall \,t \in (0,t_{1}). \end{aligned} $$
(71)

On the other hand, multiplying (35) by P(x,t) and integrating along Ωr, due to (40), we have

$$ \frac{1}{2}\frac{d}{dt} \int\limits_{\Omega_{r}} { C(x) P^{2}(x,t) dx} + \int\limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx} = \frac{1}{2} \frac{d}{dt} \left[ C_{ld} P^{2}(L_{r},t) \right], \ $$
(72)

and integrating (72) in time from t1, we have

$$ \begin{aligned} \frac{1}{2} \int\limits_{\Omega_{r}} { C(x) P^{2}(x,t) dx} &+ \frac{1}{2} C_{ld} P^{2}(L_{r},t_{1}) + \iint\limits_{\mathcal{Q}_{t_{1}}^{t}} { q(x,P) \, P_{x}^{2} dx dt} = \\ &\frac{1}{2} \int \limits_{\Omega_{r}} { C(x) P^{2}(x,t_{1}) dx} + \frac{1}{2} C_{ld} P^{2}(L_{r},t) \ \forall\,t \in (t_{1}, t_{2}). \end{aligned} $$
(73)

By (68) with M>0 we find that

$$ C_{ld} P^{2}(L_{r},t) \leqslant \frac{1}{C_{ld}} \left(\int\limits_{\Omega_{r}} {C(x) P (x,t) dx} \right)^{2} \leqslant \frac{\|C(x)\|_{1}}{C_{ld}} \int\limits_{\Omega_{r}} {C(x) P^{2}(x,t) dx} \; \forall \, t \in (t_{1}, t_{2}). $$
(74)

As a result, from (73), due to (74) and (71), we have

$$ \begin{aligned} &\frac{1}{2}\left(1- \frac{\|C(x)\|_{1}}{C_{ld}}\right) \int\limits_{\Omega_{r}} {C(x) P^{2}(x,t) dx} + \frac{1}{2} C_{ld} P^{2}(L_{r},t_{1}) +\\ &\iint\limits_{\mathcal{Q}_{t_{1}}^{t}} { q(x,P) \, P_{x}^{2} dx dt} \leqslant \frac{1}{2} \int\limits_{\Omega_{r}} {C(x) P^{2}(x,t_{1}) dx} \leqslant \\ & \qquad \qquad \quad K_{1} := K_{0} + \int\limits_{\Omega_{r}^{\epsilon}} {C(x) \left(f^{2}(x,t_{1}) - P_{1}^{2}(x,t_{1}) \right) dx} \; \forall \, t \in (t_{1}, t_{2}) \end{aligned} $$
(75)

provided

$$ 1- \frac{\|C(x)\|_{1}}{C_{ld}} > 0 \Leftrightarrow 0< \frac{\|C(x)\|_{1}}{C_{ld}} < 1. $$
(76)

Multiplying (35) by Pα+1(x,t) with \(\alpha \geqslant 0\) and integrating along Ωr and in time, we have

$$ \begin{aligned} \int\limits_{\Omega_{r}} C(x) P^{\alpha +2}(x,t)& dx + C_{ls} P^{\alpha +2}(0,t) + (\alpha +1)(\alpha +2) \iint\limits_{\mathcal{Q}_{0}^{t_{1}}} { q(x,P) \, P^{\alpha }P_{x}^{2} dx dt} = \\ &\int\limits_{\Omega_{r}} C(x) P_{0}^{\alpha +2}(x) dx + C_{ls} P_{0}^{\alpha +2}(0) =: K_{\alpha} \; \forall\,t \in (0,t_{1}), \end{aligned} $$
(77)
$$ \begin{aligned} &\left(1- \left(\tfrac{\|C(x)\|_{1}}{C_{ld}} \right)^{\alpha +1} \right) \int\limits_{\Omega_{r}} { C(x) P^{\alpha +2}(x,t) dx} + C_{ld} P^{\alpha +2}(L_{r},t_{1}) +\\ &(\alpha +1)(\alpha +2) \iint\limits_{\mathcal{Q}_{t_{1}}^{t}} {q(x,P) \, P^{\alpha} P_{x}^{2} dx dt} \leqslant \int\limits_{\Omega_{r}} { C(x) P^{\alpha +2}(x,t_{1}) dx} \leqslant \\ & \qquad \quad K_{\alpha +1} := K_{\alpha} + \int\limits_{\Omega_{r}^{\epsilon}} { C(x) \left(f^{\alpha +2}(x,t_{1}) - P_{1}^{\alpha +2}(x,t_{1}) \right) dx} \; \forall \, t \in (t_{1}, t_{2}) \end{aligned} $$
(78)

provided (76). Next by Moser’s method [20], taking into account that

$${\underset{\Omega_{r}}{\sup}} |P| = {\underset{\gamma \rightarrow +\infty}{\lim}} \left(\frac{1}{|\Omega_{r}|} \int\limits_{\Omega_{r}} { P^{\gamma} dx} \right)^{\frac{1}{\gamma}}, $$

due to the periodicity and infC(x)>0, from (78) we obtain

$$ {\underset{\Omega_{r}}{\sup}} |P| \leqslant K < +\infty \ \forall\, t > 0, $$
(79)

provided \( {\underset {\Omega _{r}^{\epsilon }}{\sup }} |f(x,t_{1})| < + \infty \) and \( 0< \frac {\|C(x)\|_{1}}{C_{ld}} < 1\).

Now we obtain the main a priori estimates for the gradient Px in L(0,t2;L2(Ωr)) and for the time derivative Pt in \(L^{2}(\mathcal {Q}_{t_{2}})\). Using these estimates we are able to build a weak solution for the problem at hand.

A priori estimate: Multiplying (35) by Pt and integrating along Ωr, we have

$$ \begin{aligned} \frac{1}{2} \frac{d}{dt} \int\limits_{\Omega_{r}} {q(x,P) \, P_{x}^{2} dx} &+ \int\limits_{\Omega_{r}} {C(x) P_{t}^{2} dx} = \\ &\int\limits_{\Omega_{r}} \left. {\left(\tfrac{N(x) q(x,P)}{8\pi\mu} \right)^{\frac{1}{2}} \, P_{x}^{2} C(x) \, P_{t} dx} + P_{t} q(x,P) \, P_{x} \right|_{0}^{L_{r}}, \end{aligned} $$
(80)

whence, due to (37),

$$ \begin{aligned} &\frac{1}{2} \frac{d}{dt} \int\limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx} + \int\limits_{\Omega_{r}} { C(x) P_{t}^{2} dx} + C_{ls}(P(0,t))_{t}^{2} = \int\limits_{\Omega_{r}} { \left(\frac{N q}{ 8 \pi \mu} \right)^{1/2} P_{x}^{2} C(x) P_{t} dx} \leqslant \\ &{\underset{\Omega_{r}}{\sup}}| q(x,P) \, P_{x} | \left(\int\limits_{\Omega_{r}} {C(x) P^{2}_{t} dx} \right)^{\frac{1}{2}} {\underset{\Omega_{r}}{\sup}} \left| \frac{C(x)N(x)}{q(x,P)^{2}} \right|^{\frac{1}{2}} \left(\int\limits_{\Omega_{r}} {q(x,P) \, P_{x}^{2} dx} \right)^{\frac{1}{2}} \leqslant \\ & \qquad \qquad \quad {\underset{\Omega_{r}}{\sup}} \left| \frac{C^{2}(x)|\Omega_{r}| N(x)}{\pi q(x,P)^{2}} \right|^{\frac{1}{2}} \left(\int\limits_{\Omega_{r}} {C(x) P^{2}_{t} dx} \right) \left(\int\limits_{\Omega_{r}} {q(x,P) \, P_{x}^{2} dx} \right)^{\frac{1}{2}} \end{aligned} $$
(81)

for all t(0,t1). Let us denote by

$$y(t):= \tfrac{1}{2} \int \limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx}, \quad a(t) : = \int \limits_{\Omega_{r}} { C(x) P_{t}^{2} dx}, \,\, b(t) := C_{ls}(P(0,t))_{t}^{2}. $$

Then from (81) and using that \(q \geq \tfrac {1}{8 \pi \mu } N A^{2}_{0}\) we find that

$$ y'(t) + b(t) \leqslant a(t) \left(C_{1} y^{\frac{1}{2}}(t) - 1 \right), $$
(82)

where

$$C_{1} = {\underset{\Omega_{r}}{\sup}} \left| \frac{ 64 \pi \mu^{2} |\Omega_{r}| C^{2}(x)} { N(x) A^{4}_{0}(x)} \right|^{\frac{1}{2}}. $$

Indeed, taking into account

$$\begin{aligned} \frac{1}{4 \pi \mu} {\underset{\Omega_{r}}{\inf}} \left(N(x)A_{0}^{2}(x) \right)\,y(t) &\leqslant \int\limits_{\Omega_{r}} { q(x,P)^{2} \, P_{x}^{2} dx} \leqslant \\ &\left(\frac{|\Omega_{r}|}{\pi} \right)^{2} \int\limits_{\Omega_{r}} { (q(x,P) \, P_{x})_{x}^{2} dx} \leqslant \left(\frac{|\Omega_{r}|} {\pi} \right)^{2} {\underset{\Omega_{r}}{\sup}}(C(x)) a(t), \end{aligned} $$

i. e.

$$ a(t) \geqslant C_{2} y(t), \text{ where} C_{2} = \frac{\pi}{4 \mu |\Omega_{r}|^{2}} {\underset{\Omega_{r}}{\inf}} \left(\frac{N(x)A_{0}^{2}(x)}{C(x)} \right), $$
(83)

from (82) we get

$$ y'(t) + b(t) \leqslant C_{2}y(t) \left(C_{1} y^{\frac{1}{2}}(t) -1 \right), $$
(84)

provided \(y(0) < \frac {1}{C_{1}^{2}} \). So,

$$y_{1}(t) \leqslant \frac{\beta^{2} y_{1}(0)}{\left(y_{1}^{\frac{1}{2}}(0) + \left(\beta - y_{1}^{\frac{1}{2}}(0) \right) e^{\frac{\alpha \beta}{2}t} \right)^{2}} \; \forall\, t \in [0,t_{1}) \text{ if} y(0) < \beta^{2}, $$

where α=C1C2 and \(\beta = \frac {1}{C_{1}}\).

Similar to (81), for all t(t1,t2) we deduce that

$$ \begin{aligned} &\frac{1}{2} \frac{d}{dt} \int\limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx} + \int\limits_{\Omega_{r}} { C(x) P_{t}^{2} dx} \leqslant \\ & \quad C_{ld} (P(L_{r},t))_{t}^{2} + {\underset{\Omega_{r}}{\sup}} \left| \frac{C^{2}(x)N(x)|\Omega_{r}|}{\pi q(x,P)^{2}} \right|^{\frac{1}{2}} \left(\int\limits_{\Omega_{r}} { C(x) P^{2}_{t} dx} \right) \left(\int\limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx} \right)^{\frac{1}{2}}. \end{aligned} $$
(85)

Let us denote by

$$d(t) := C_{ld} (P(L_{r},t))_{t}^{2}. $$

Then from (85) we find that

$$ y'(t) \leqslant a(t) \left(C_{1} y^{\frac{1}{2}}(t) - 1 \right) + d(t). $$
(86)

By the volume conservation (68), we arrive at

$$ d(t) = \tfrac{1}{C_{ld}} \left(\int\limits_{\Omega_{r}} { (C(x) P)_{t} dx} \right)^{2} \leqslant \frac{\|C(x)\|_{1}}{C_{ld}} \int\limits_{\Omega_{r}} { C(x) P_{t}^{2} dx} = \frac{\|C(x)\|_{1}}{C_{ld}} a(t). $$
(87)

Due to (83) and (87), from (86) we get

$$ y'(t) \leqslant C_{2} y(t) \left(C_{1} y^{\frac{1}{2}}(t) - C_{3} \right) $$
(88)

provided \(y(t_{1}) < \left (\frac {C_{3}}{C_{1}} \right)^{2}\), where \(C_{3} = 1 - \frac {\|C(x)\|_{1}}{C_{ld}} > 0\). So,

$$y_{2}(t) \leqslant \frac{\gamma^{2} y_{2}(t_{1})}{\left(y_{2}^{\frac{1}{2}}(t_{1}) + \left(\gamma - y_{2}^{\frac{1}{2}}(t_{1}) \right) e^{\frac{\alpha \beta}{2}(t-t_{1})} \right)^{2}} \ \forall\, t \in [t_{1},t_{2}) \text{ if} y(t_{1}) < \gamma^{2}, $$

where α=C1C2 and \(\gamma = \frac {C_{3}}{C_{1}} < \beta \). By the periodicity y2(t2)=y1(0), we get

$$ \begin{aligned} & e^{\frac{\alpha \beta}{2}t_{2}} \leqslant \tfrac{y_{2}^{\frac{1}{2}}(t_{1})\left(\gamma - y_{1}^{\frac{1}{2}}(0) \right)}{ y_{1}^{\frac{1}{2}}(0)\left(\gamma - y_{2}^{\frac{1}{2}}(t_{1}) \right)} e^{\frac{\alpha \beta}{2}t_{1}} \leqslant \tfrac{y_{2}^{\frac{1}{2}}(t_{1}) \left(\gamma - y_{1}^{\frac{1}{2}}(0)\right)}{y_{1}^{\frac{1}{2}}(0) \left(\gamma - y_{2}^{\frac{1}{2}}(t_{1}) \right)} \, \tfrac{y_{1}^{\frac{1}{2}}(0) \left(\beta- y_{1}^{\frac{1}{2}} (t_{1}) \right)}{y_{1}^{\frac{1}{2}}(t_{1}) \left(\beta - y_{1}^{\frac{1}{2}}(0) \right)} = \\ &\frac{ \gamma-y_{1}^{\frac{1}{2}}(0)}{\beta-y_{1}^{\frac{1}{2}}(0)} \, \frac{y_{2}^{\frac{1}{2}}(t_{1})\left(\beta - y_{1}^{\frac{1}{2}}(t_{1})\right)}{y_{1}^{\frac{1}{2}}(t_{1}) \left(\gamma-y_{2}^{\frac{1}{2}}(t_{1}) \right)} \Rightarrow t_{1} < t_{2} \leqslant T^{*}:= \tfrac{2}{\alpha \beta} \ln \left[ \frac{y_{2}^{\frac{1}{2}} (t_{1}) \left(\beta-y_{1}^{\frac{1}{2}}(t_{1}) \right)}{\kappa y_{1}^{\frac{1}{2}}(t_{1})\left (\gamma-y_{2}^{\frac{1}{2}}(t_{1}) \right)} \right], \end{aligned} $$

where \(\kappa : = \frac { \beta - y_{1}^{\frac {1}{2}}(0) }{ \gamma - y_{1}^{\frac {1}{2}}(0)} > 1 \), provided

$$y_{2}(t_{1}) > \tfrac{\gamma^{2} \kappa^{2} e^{\alpha \beta t_{1}} y_{1}(t_{1})}{\left(\beta + \left(\kappa e^{\frac{\alpha \beta}{2}t_{1}} -1 \right)y_{1}^{\frac{1}{2}}(t_{1}) \right)^{2}}, \ y_{1}(0) < \gamma^{2} \text{ and} \tfrac{\|C(x)\|_{1}}{C_{ld}} < 1. $$

As a result, we obtain the main a priori estimate

$$ \frac{1}{2} \int\limits_{\Omega_{r}} { q(x,P) \, P_{x}^{2} dx} + \iint\limits_{\mathcal{Q}_{t}} { C(x) P_{t}^{2} dx} \leqslant C_{0} < \infty, $$
(89)

for all t(0,t2).

Now we show that the solution constructed above is unique. We use a proof by contradiction.

Uniqueness: Let u and v be two solutions to the problem (35)–(40). Let us denote by w=uv satisfying

$$ C(x) w_{t} = \left(q(x,u) \, w_{x} + \frac{1}{2} (q_{u}(x,u) + q_{v}(x,v)) \, w v_{x} \right)_{x} $$
(90)
$$ \text{with initial data} \quad w(x,0) = 0. $$
(91)

Multiplying (90) by w(x,t) and integrating along Ωr, due to (37), we have

$$ \begin{aligned} &\frac{1}{2} \frac{d}{dt} \int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} + \frac{1}{2} \frac{d}{dt} \left[ C_{ls} w^{2}(0,t) \right] + \int\limits_{\Omega_{r}} { q(x,u) \, w_{x}^{2} dx} = \\ & - \int\limits_{\Omega_{r}} { \frac{1}{2} (q_{u}(x,u) + q_{v}(x,v)) v_{x} w w_{x} dx} \leqslant \\ & \frac{1}{2} \left(\int\limits_{\Omega_{r}} {q(x,u) \, w_{x}^{2} dx} \right)^{\frac{1}{2}} {\underset{\Omega_{r}}{\sup}} | q(x,v) \, v_{x} | {\underset{\Omega_{r}}{\sup}} \left[ \frac{ (q_{u}(x,u) + q_{v}(x,v))^{2}} { C(x) q(x,u) q^{2}(x,v)} \right]^{\frac{1}{2}} \left(\int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} \right)^{\frac{1}{2}} \end{aligned} $$
(92)

for all t(0,t1). Using Cauchy inequality, boundedness of u and v, q(x,v) vxL2(0,t1;H1(Ωr)), due to Grönwall lemma, we get

$$ \int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} \leqslant 0 \Rightarrow w(x,t) = 0 \ \forall\,t \in (0,t_{1}). $$
(93)

On the other hand, multiplying (90) by w(x,t) and integrating along Ωr, due to (40), we have

$$ \begin{aligned} \frac{d}{dt} \int\limits_{\Omega_{r}} C(x) w^{2}(x,t) & dx + \int\limits_{\Omega_{r}} { q(x,u) \, w_{x}^{2} dx} \leqslant \\ &\frac{d}{dt} \left[ C_{ld} w^{2}(L_{r},t) \right] + \tilde{C}\, {\underset{\Omega_{r}}{\sup}} | q(x,v) \, v_{x} |^{2} \int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} \end{aligned} $$
(94)

for all t(t1,t2), where \(\tilde {C} > 0\). As

$$\int \limits_{\Omega_{r}} { C(x) w(x,t) dx} = C_{ld} w(L_{r}, t) \ \forall\,t \in (t_{1}, t_{2}), $$

then

$$ C_{ld} w^{2}(L_{r},t) = \frac{1}{C_{ld}} \left(\int\limits_{\Omega_{r}} { C(x) w (x,t) dx} \right)^{2} \leqslant \frac{\|C(x)\|_{1}}{C_{ld}} \int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} \ \forall\,t \in (t_{1}, t_{2}). $$
(95)

So, integrating (94) in time from t1 to t, using (95), we have

$$ \begin{aligned} \left(1- \frac{\|C(x)\|_{1}}{C_{ld}} \right) &\int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} + C_{ld} w^{2}(L_{r},t_{1}) + \iint\limits_{\mathcal{Q}_{t_{1}}^{t}} { q(x,P) \, P_{x}^{2} dx dt} \leqslant \\ & \qquad \tilde{C} \int\limits_{t_{1}}^{t} { {\underset{\Omega_{r}}{\sup}} | q(x,v) \, v_{x} |^{2} \int\limits_{\Omega_{r}} { C(x) w^{2}(x,t) dx} dt} \; \forall \, t \in (t_{1}, t_{2}) \end{aligned} $$
(96)

provided C(x)1<Cld. Applying Grönwall lemma to (96), we get w(x,t)=0 for all t(t1,t2). As a result, we obtain that w=0u=v for all t(0,t2).

Conclusions

Two mathematical models of the Fontan circulation have been proposed, a spatially homogenous ODE model and a spatially inhomogeneous PDE model. These models represent the first step towards modelling blood flow in the Fontan circulation and improving our understanding of Fontan failure. Using the spatially homogeneous ODE model, we were able to show changes in cardiac output in response to changes in pulmonary vascular resistance, and changes in the ventricular pressure-volume loop in response to changes in pulmonary vascular resistance and heart rate. In particular for the cardiac output, there was an inflection point in the data that suggests the possibility of two different models regimes, which could potentially be healthy and failing Fontan circulation. Further investigation is needed to understand the significance of this inflection point. For the spatially inhomogeneous PDE model, we were able to prove the existence and uniqueness of a non-negative solution as the first step towards developing this model.

One of the challenges in modelling the Fontan circulation is the lack of large datasets, particular for failing Fontan circulation, in part due to the variety of failure modes. One possible use for these models going forward is in the generation of synthetic testing data for a large range of model parameters in both healthy and failing Fontan scenarios. By solving thousands of forward problem with different parameter values, we can identify the sensitivity of the model outputs to individual parameters and the corresponding ranges of these parameters that yield results in the healthy and failing Fontan regimes. By refining and classifying the data into the two regimes, we can generate synthetic data for healthy and failing Fontan cases. By identifying the most sensitive parameters and the magnitudes of these parameters that indicate the initiation of Fontan failure, we can inform the clinicians who care for these patients regarding which parameters should be collected and analysed.

References

  1. 1

    Bazilevs Y, Hsu M-C, Benson D, Sankaran S, Marsden A (2009) Computational fluid–structure interaction: methods and application to a total cavopulmonary connection. Comput Mech 45:77–89.

  2. 2

    Camposilvan S, Milanesi O, Stellin G, Pettenazzo A, Zancan L, D’Antiga L (2008) Liver and cardiac function in the long term after Fontan operation. Ann Thorac Surg 86:177–182.

  3. 3

    Cavalcanti S, Gnudi G, Masetti P, Ussia GP, Marcelletti CF (2001) Analysis by mathematical model of haemodynamic data in the failing fontan circulation. Physiol Meas 22:209.

  4. 4

    De Leval MR (2005) The Fontan circulation: a challenge to William Harvey?. Nat Clin Pract Cardiovasc Med 2:202–208.

  5. 5

    DeGroff C (2008) Modeling the Fontan circulation: where we are and where we need to go. Pediatr Cardiol 29:3–12.

  6. 6

    Diller G-P, Giardini A, Dimopoulos K, Gargiulo G, Müller J, Derrick G, Giannakoulas G, Khambadkone S, Lammers AE, Picchio FM, et al. (2010) Predictors of morbidity and mortality in contemporary fontan patients: results from a multicenter study including cardiopulmonary exercise testing in 321 patients. Eur Heart J 31(24):3073–3083.

  7. 7

    Dubini G, De Leval M, Pietrabissa R, Montevecchi F, Fumero R (1996) A numerical fluid mechanical study of repaired congenital heart defects. Application to the total cavopulmonary connection. J Biomech 29:111–121.

  8. 8

    d’Udekem Y, Iyengar AJ, Cochrane AD, Grigg LE, Ramsay JM, Wheaton GR, Penny DJ, Brizard CP (2007) The Fontan procedure contemporary techniques have improved long-term outcomes. Circulation 116:I–157.

  9. 9

    E Magosso MU, Cavalcanti S (2002) Long-term survival, modes of death, and predictors of mortality in patients with Fontan surgery. Am J Physiol Heart Circ Physiol 282:1018–1034.

  10. 10

    Eicken A, Fratz S, Gutfried C, Balling G, Schwaiger M, Lange R, Busch R, Hess J, Stern H (2003) Hearts late after fontan operation have normal mass, normal volume, and reduced systolic function: a magnetic resonance imaging study. J Am Coll Cardiol 42:1061–1065.

  11. 11

    Fernandes SM, McElhinney DB, Khairy P, Graham DA, Landzberg MJ, Rhodes J (2010) Serial cardiopulmonary exercise testing in patients with previous Fontan surgery. Pediatr Cardiol 31:175–180.

  12. 12

    Goldberg DJ, Shaddy RE, Ravishankar C, Rychik J (2011) The failing Fontan: etiology, diagnosis and management. Expert Rev Cardiovasc Ther 9:785–793.

  13. 13

    Guyton AC (1963) Circulatory Physiology, Cardiac Output and its Regulation. W. B. Saunders, Philadelphia.

  14. 14

    Kendall TJ, Stedman B, Hacking N, Haw M, Vettukattill JJ, Salmon AP, Cope R, Sheron N, Millward-Sadler H, Veldtman GR, et al. (2008) Hepatic fibrosis and cirrhosis in the Fontan circulation: A detailed morphological study. J Clin Pathol 61:504–508.

  15. 15

    Khairy P, Fernandes SM, Mayer JE, Triedman JK, Walsh EP, Lock JE, Landzberg MJ (2008) Long-term survival, modes of death, and predictors of mortality in patients with Fontan surgery. Circulation 117:85–92.

  16. 16

    Khairy P, Poirier N, Mercier L-A (2007) Univentricular Heart. Circulation 115:800–812.

  17. 17

    Kung E, Pennati G, Migliavacca F, Hsia T-Y, Figliola R, Marsden A, Giardini A, Investigators M (2014) A simulation protocol for exercise physiology in Fontan patients using a closed loop lumped-parameter model. J Biomech Eng 136:081007–1–081007–14.

  18. 18

    Liang F, Senzaki H, Kurishima C, Sughimoto K, Inuzuka R, Liu H (2014) Hemodynamic performance of the Fontan circulation compared with a normal biventricular circulation: a computational model study. Am J Physiol Heart Circ Physiol 307:H1056–H1072.

  19. 19

    Mondésert B, Marcotte F, Mongeon F-P, Dore A, Mercier L-A, Ibrahim R, Asgar A, Miro J, Poirier N, Khairy P (2013) Fontan circulation: success or failure?. Can J Cardiol 29:811–820.

  20. 20

    Moser J (1966) A rapidly convergent iteration method and non-linear partial differential equations-i. Annali della Scuola Normale Superiore di Pisa-Classe di Scienze 20:265–315.

  21. 21

    Paridon SM, Mitchell PD, Colan SD, Williams RV, Blaufox A, Li JS, Margossian R, Mital S, Russell J, Rhodes J (2008) A cross-sectional study of exercise performance during the first 2 decades of life after the Fontan operation. J Am Coll Cardiol 52:99–107.

  22. 22

    Piran S, Veldtman G, Siu S, Webb GD, Liu PP (2002) Heart failure and ventricular dysfunction in patients with single or systemic right ventricles. Circulation 105:1189–1194.

  23. 23

    Tang E, Wei Z, Fogel MA, Veneziani A, Yoganathan AP (2017) Fluid-structure interaction simulation of an intra-atrial Fontan connection. In: Nithiarasu P Robertson A (eds)Proceedings of the 5th International Conference on Computational and Mathematical Biomedical Engineering, 888–891.

  24. 24

    Taylor CA, Hughes TJ, Zarins CK (1996) Computational investigations in vascular disease. Comput Phys 10:224–232.

  25. 25

    Throckmorton AL, Carr JP, Tahir SA, Tate R, Downs EA, Bhavsar SS, Wu Y, Grizzard JD, Moskowitz WB (2011) Mechanical cavopulmonary assistance of a patient-specific Fontan physiology: Numerical simulations, lumped parameter modeling, and suction experiments. Artif Organs 35:1036–1047.

  26. 26

    Valente AM, Bhatt AB, Cook S, Earing MG, Gersony DR, Aboulhosn J, Opotowsky AR, Lui G, Gurvitz M, Fernandes SM, et al. (2009) Congenital heart disease in adults lower extremity systemic venous health in Fontan patients study. Circulation 120:S601–S601.

  27. 27

    Wei ZA, Trusty PM, Tree M, Haggerty CM, Tang E, Fogel M, Yoganathan AP (2017) Can time-averaged flow boundary conditions be used to meet the clinical timeline for Fontan surgical planning?. J Biomech 50(4):172–179.

  28. 28

    Yang W, Feinstein JA, Marsden AL (2010) Constrained optimization of an idealized Y-shaped baffle for the Fontan surgery at rest and exercise. Comput Methods Appl Mech Eng 199:2135–2149.

Download references

Acknowledgements

The authors would like to thank the organizers and participants of the Industrial Problem Solving Workshop (2016, Fields Institute) where the problem studied in this article was originally proposed, especially Rob Andrews, Almut Burchard, Itamar Halevy, Greg Lewis, Faizan Khalid Mohsin, Pinaki Mondal, and Siv Sivaloganathan. We also acknowledge Lucy Roche and Amine Mazine for their contributions to the clinical aspects of this project. We also acknowledge two anonymous reviewers for their helpful suggestions that improved the quality of the manuscript.

Funding

This work was partially supported by a grant from the Simons Foundation (no. 277088 to M. Chugunova) and by a grant (NSF-DMS 1515130 to J.P. Keener).

Availability of data and materials

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

Author information

All authors participated in the conceptualization of the research. JK derived the mathematical models. MC analysed the ODE model and RT analysed the PDE model. MD ran multiple numerical simulations and helped with interpretations of numerical results. All authors revised the manuscript for intellectual content, and approved the final manuscript.

Correspondence to Marina Chugunova.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License(http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Keywords

  • Mathematical modeling
  • Mathematical physiology
  • Lumped parameter model
  • Fontan surgery
  • Dynamic flux boundary conditions
  • Heart pressure

AMS Subject Classification

  • Primary 34B08
  • 35K20
  • secondary 92C50
